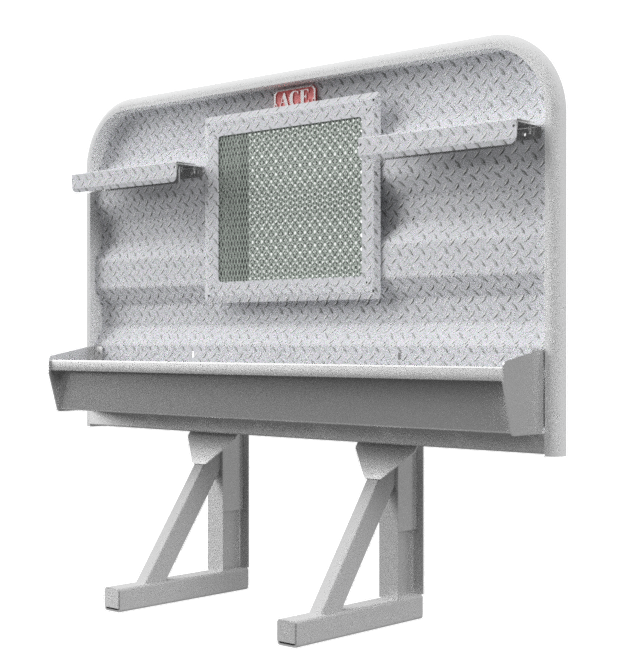

HR11 Headache Rack for Semi Truck 4' Tall with Full Width Tray, Tire Chain Hangers, & Mesh Window

Product Features:

• Headache rack for semi truck built as a 4 foot tall aluminum cab guard

• Part of the Ace Manufacturing HR11 series combining protection and onboard storage

• Tractor trailer headache rack constructed from durable aluminum checker plate

• Semi truck aluminum headache rack provides strength while reducing overall vehicle weight

• Full width tray design runs the entire width of the rack for equipment and chain storage

• Two tire chain hanger mounts integrated into the rack

• Mesh window design allows rear visibility while helping block debris and cargo contact

• Two window height options available including 39" and 42" mesh window configurations

• Ideal for operators who want airflow and visibility without a jailbar window

• Mounting kit required for installation (sold separately) — recommended kits: UHD4X15 (aka HR01-15) or UB4X18

Product Description:

The Ace Manufacturing HR11003M / HR11006M headache rack for semi truck applications delivers dependable rear cab protection with added storage capability in a 4 foot tall aluminum design. This tractor trailer headache rack features a full width tray along with two tire chain hanger mounts, making it a practical solution for vocational, fleet, and highway applications.

Both models use a mesh window to provide airflow and rear visibility while offering protection from shifting cargo. The HR11003M includes a 39 inch high mesh window, while the HR11006M offers a 42 inch high mesh window option. Built from corrosion-resistant aluminum checker plate, these headache racks require a compatible mounting kit for proper installation. Recommended options are the UHD4X15 (aka HR01-15) or UB4X18 universal U-bolt mount kit.

Specs:

• Manufacturer: Ace Manufacturing

• Product series: HR11 series

• Models: HR11003M, HR11006M

• Product type: Headache rack for semi truck

• Secondary classification: Tractor trailer headache rack

• Material: Aluminum checker plate and structural aluminum frame

• Finish: Aluminum checker plate

• Headache rack height: 4 feet tall

• Tray: Full width integrated tray

• Tire chain hangers: Two mounts

• Window type: Mesh

• Window height options:

  • 39" (HR11003M)

  • 42" (HR11006M)
• Lighting: None

• Mounting kit: Required for installation, sold separately

• Recommended mount kits: HR01-15PC or UB4X18

• Mounting style: U-Bolt Frame mounted

• Application: Semi trucks, tractor trailers, highway and fleet trucks

• Shipping: LTL freight shipment required
