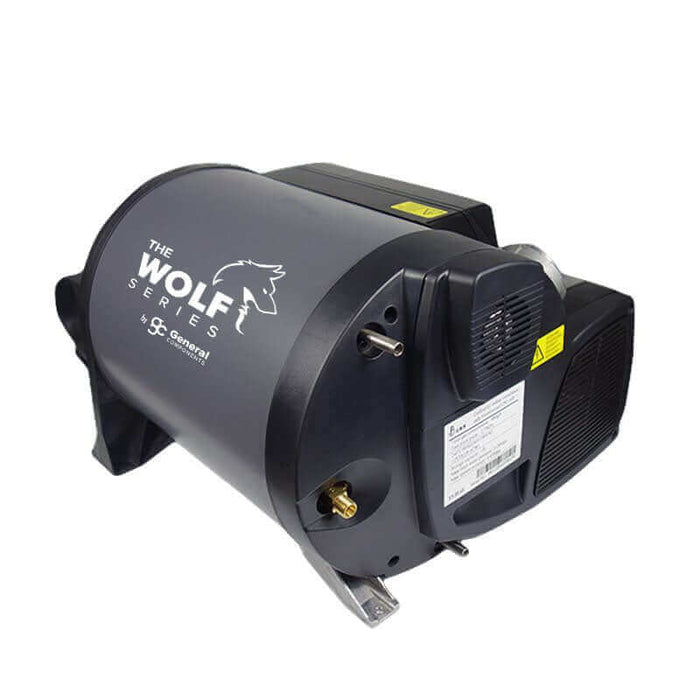

General Components GC6189 Wolf 6000AW Combi Heater

Original price $3,468.00 - Original price $3,468.00
Original price
$3,468.00
$3,468.00 - $3,468.00
Current price $3,468.00

Product Details:

  • Analog of Truma D6E, popular in Europe
  • Rated for 240V and 120V water heating elements
  • 10L stainless water tank
  • Can heat both air and water at the same time
  • Kit includes one-way water valve and pressure relief safety valve
  • Water supply to tank should be pressurized
  • No built-in water pump

Product Description:

The General Components Wolf 6000AW Combi Heater (Part #GC6189) is the perfect solution for heating and hot water in your RV. This unit is an analog of the popular Truma D6E, which has been adopted for the North American market. The Wolf 6000AW produces plenty of heat to bring comfort to vehicles of any size and is equipped with a 10L stainless water tank. It can heat both air and water at the same time using gasoline or electric power and works best when hooked up to electric power on a campsite. The kit includes all necessary hardware for basic installation onto a standard RV, including a one-way water valve, pressure relief safety valve, and adapters for connecting to the water line. Note that water supply to the tank should be pressurized, as there is no built-in water pump on this unit.

Specs:

  • Weight: 15.6kg
  • Dimensions: 510mm x 450mm x 300mm (20" x 17 3/4" x 12")
  • Environmental Protection: IP21
  • Working Temperature: -25℃ to 40℃ (-13F to 104F) @ RH60±25%
  • Nominal Voltage: 12.8V
  • Operating Voltage Range: 10.5V-16V
  • Current Draw: 4A
  • Intermittent Maximum Current Draw: 8-10A 6A
  • Quiescent Current: 1mA
  • Supply Air Volume, max: 287 m3/h
  • Water Tank Capacity: 10L
  • Water Pressure, max: 2.8bar
  • Fuel Consumption: 220-550 g/h, 160-480 g/h
  • Fuel-generated Heat: 2-5kW, 2-6kW
  • AC Current @120VAC: 6-12A
  • AC Current @240VAC: 4-8A
  • Electric Power @120V: 720W/1440W
  • Electric Power @240V: 900W/1800W
  • Operating Altitude, max: 1500m
SKU GC6189
Availability:
Only 1 left!
