HR11 Headache Rack for Semi Truck 4' Tall with Jailbar Window, Tray, & Tire Chain Hangers (Lights Optional)

Product Features:

• Headache rack for semi truck built as a 4 foot tall aluminum cab guard

• Part of the Ace Manufacturing HR11 series designed for lower-profile rear cab protection with added storage

• Tractor trailer headache rack constructed from durable aluminum checker plate

• Semi truck aluminum headache rack provides strength while reducing overall vehicle weight

• Full width tray design runs the entire width of the rack for storage and equipment support

• Two tire chain hanger mounts integrated into the upper portion of the rack

• Jailbar window design provides rear visibility while maintaining cab protection

• Multiple window height options available including 39" and 42" jailbar window configurations

• One configuration includes 39" high jailbar window with integrated lights

• Ideal for operators who want storage, visibility, and protection without moving to a taller rack

• Mounting kit required for installation (sold separately) — recommended kits: UHD4X15 (aka HR01-15) or UB4X18

Product Description:

The Ace Manufacturing HR11003J / HR11006J / HR11023J headache rack for semi truck applications combines dependable rear cab protection with added functionality in a 4 foot tall aluminum design. This tractor trailer headache rack features a full width tray for storage along with two integrated tire chain hanger mounts, making it a practical choice for vocational, fleet, and highway applications.

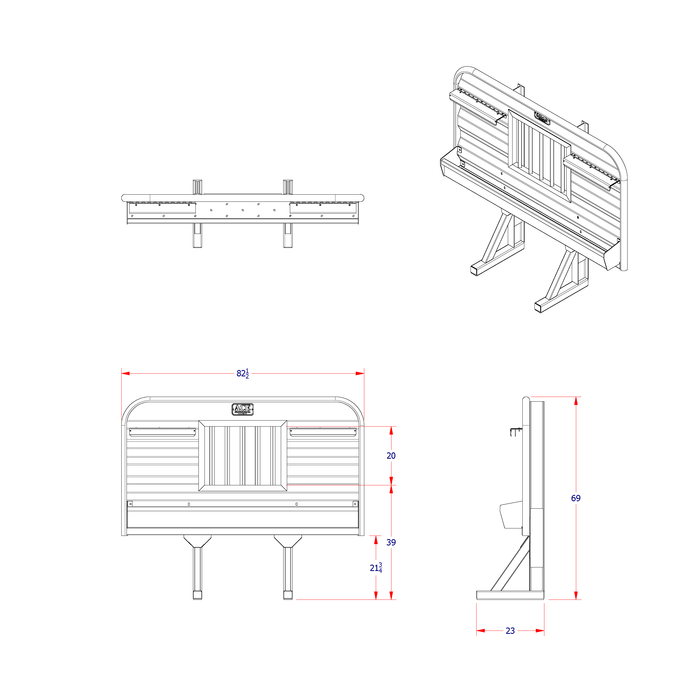

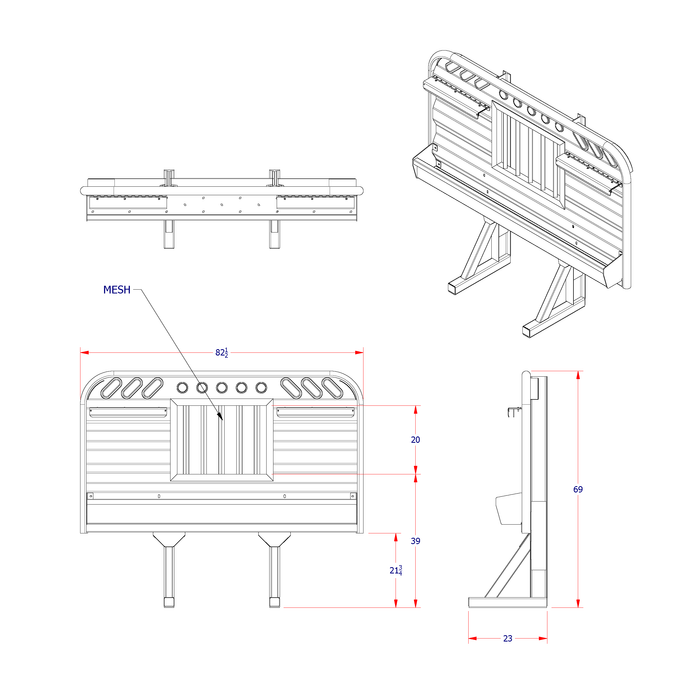

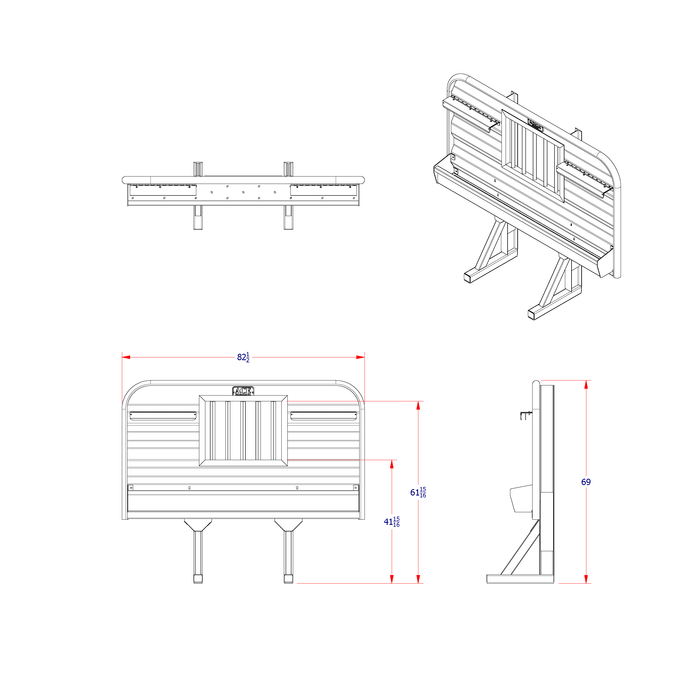

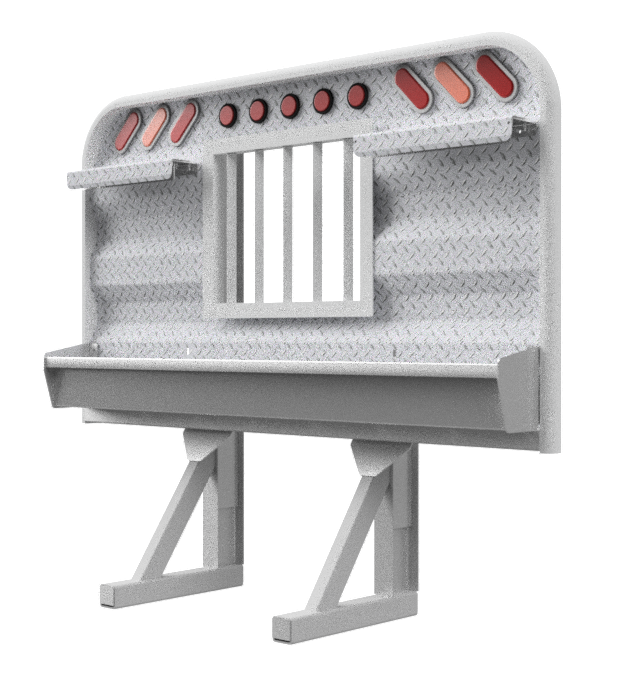

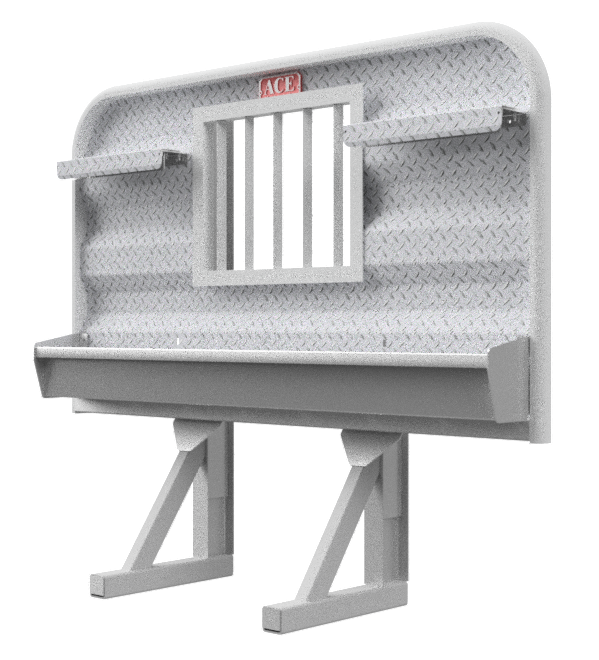

All three models feature a jailbar window for rear visibility. The HR11003J offers a 39 inch high jailbar window, the HR11023J adds integrated lights to the 39 inch jailbar window, and the HR11006J provides a 42 inch high jailbar window option. Built from corrosion-resistant aluminum checker plate, these headache racks require a compatible mounting kit for proper installation. Recommended options are the UHD4X15 (aka HR01-15) or UB4X18 universal U-bolt mount kit.

Specs:

• Manufacturer: Ace Manufacturing

• Product series: HR11 series

• Models: HR11003J, HR11006J, HR11023J

• Product type: Headache rack for semi truck

• Secondary classification: Tractor trailer headache rack

• Material: Aluminum checker plate and structural aluminum frame

• Finish: Aluminum checker plate

• Headache rack height: 4 feet tall

• Tray: Full width integrated tray

• Tire chain hangers: Two mounts
• Window type: Jailbar

• Window height options:

  • 39" (HR11003J, HR11023J)

  • 42" (HR11006J)

• Lighting:

  • HR11023J includes integrated rear lights

  • Other models do not include lights

• Mounting kit: Required for installation, sold separately

• Recommended mount kits: HR01-15PC or UB4X18

• Mounting style: U-Bolt Frame mounted

• Application: Semi trucks, tractor trailers, highway and fleet trucks

• Shipping: LTL freight shipment required
