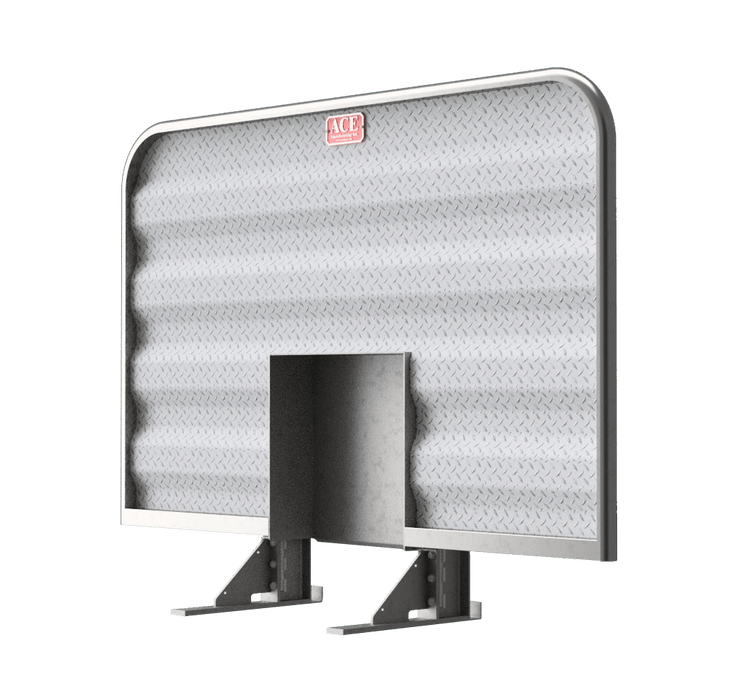

HR2 Headache Rack for Semi Truck Ultra Wide 94" with Hydraulic Tank Cutout
Product Features:
- Headache rack for semi truck featuring an ultra wide 94 inch aluminum backboard for expanded cab coverage
- Part of the Ace Manufacturing HR2 series with a full 5 foot tall headache rack plate for maximum rear cab protection
- Tractor trailer headache rack designed with a built-in cutout to mount a hydraulic tank and cradle
- Semi truck aluminum headache rack provides proper clearance for Ace Manufacturing hydraulic tank installations
- Rigid aluminum checker plate construction delivers durability without unnecessary weight
- Rounded top corners and reinforced structure for strength and a clean finished appearance
- Designed to mount hydraulic tank and cradle (shown in images but sold separately)
- Mounting kit required for installation and sold separately
- Ideal for logging, vocational, and heavy duty semi truck applications
Product Description:
The Ace Manufacturing HR20M000-94W headache rack for semi truck applications is an ultra wide 94 inch aluminum cab guard engineered to provide increased rear cab protection while accommodating hydraulic system installations. Built on the proven HR2 series platform, this tractor trailer headache rack features a full 5 foot tall aluminum backboard for enhanced coverage compared to standard-height racks.

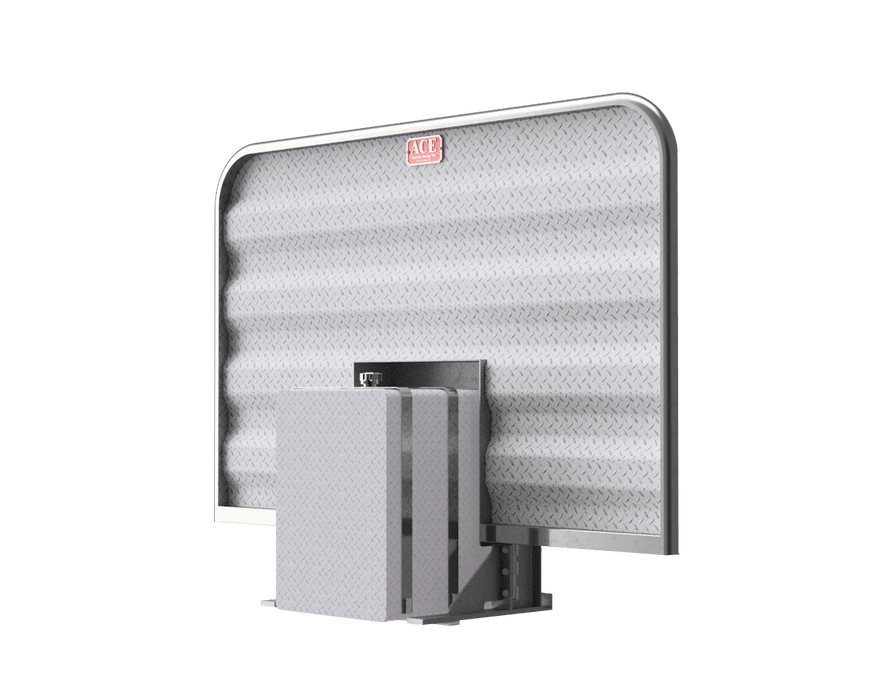

This semi truck aluminum headache rack is designed with a dedicated cutout that allows a hydraulic tank and cradle to be mounted directly behind the cab. One image shows the hydraulic tank and cradle installed to demonstrate intended use; hydraulic tank and cradle are sold separately. Constructed from corrosion-resistant aluminum checker plate, the HR20M000-94W is ideal for vocational, logging, and heavy duty truck applications. A compatible mounting kit is required and must be purchased separately. Recommended options are the UHD4X15 (aka HR01-15) or UB4X18 universal U-bolt mount kit.
Specs:
- Manufacturer: Ace Manufacturing
- Model: HR20M000-94W
- Product series: HR2 series
- Product type: Headache rack for semi truck
- Secondary classification: Tractor trailer headache rack
- Material: Aluminum checker plate and structural aluminum frame
- Finish: Aluminum checker plate
- Headache rack height: 5 feet tall (HR2 series standard)
- Overall width: 94 inches (ultra wide)
- Hydraulic compatibility: Designed to mount hydraulic tank and cradle (sold separately)
- Mounting kit: Required for installation, sold separately
- Recommended mount kits: HR01-15PC or UB4X18
- Mounting style: Frame mounted
- Application: Semi trucks, tractor trailers, logging and vocational trucks
- Shipping: LTL freight shipment required
