HR2 Headache Rack for Semi Truck with Hydraulic Tank Cutout (Window & Lights Optional)
Product Features:
- Headache rack for semi truck designed with a built-in cutout for Ace Manufacturing 60 or 70 gallon hydraulic tanks
- Part of the Ace Manufacturing HR2 series featuring a full 5 foot tall headache rack plate for increased rear cab protection
- Tractor trailer headache rack built from durable aluminum checker plate for long service life
- Semi truck aluminum headache rack provides protection while allowing proper hydraulic tank clearance
- Available in two configurations: standard cutout design or cutout with jailbar window and integrated lights
- Rounded top corners and rigid aluminum construction for strength and a clean finished appearance
- Mounting kit required for installation and sold separately
- Ideal for logging, vocational, and heavy duty semi truck applications
Product Description:
The Ace Manufacturing HR20M000 / HR20M23J headache rack for semi truck applications is engineered to provide rear cab protection while accommodating hydraulic tank installations. Built on the HR2 series platform, this tractor trailer headache rack features a full 5 foot tall aluminum backboard with a dedicated cutout designed specifically for Ace Manufacturing 60 or 70 gallon hydraulic tanks.

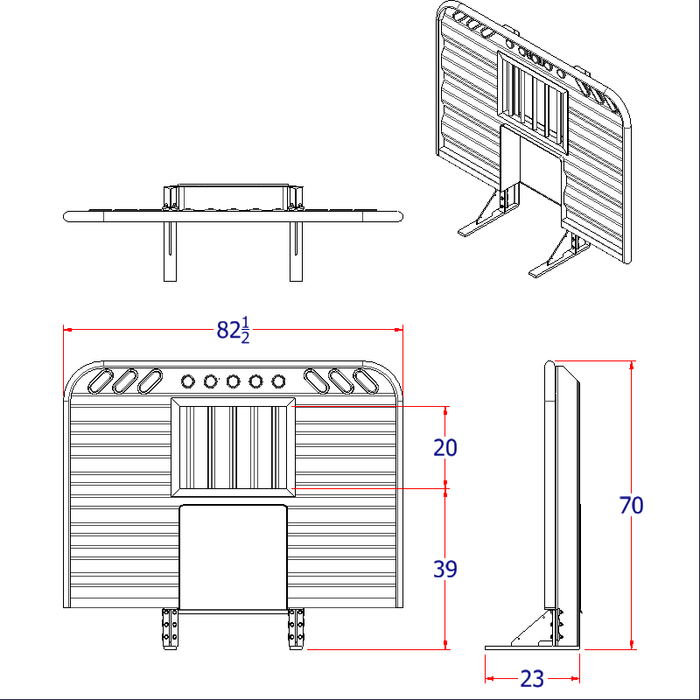

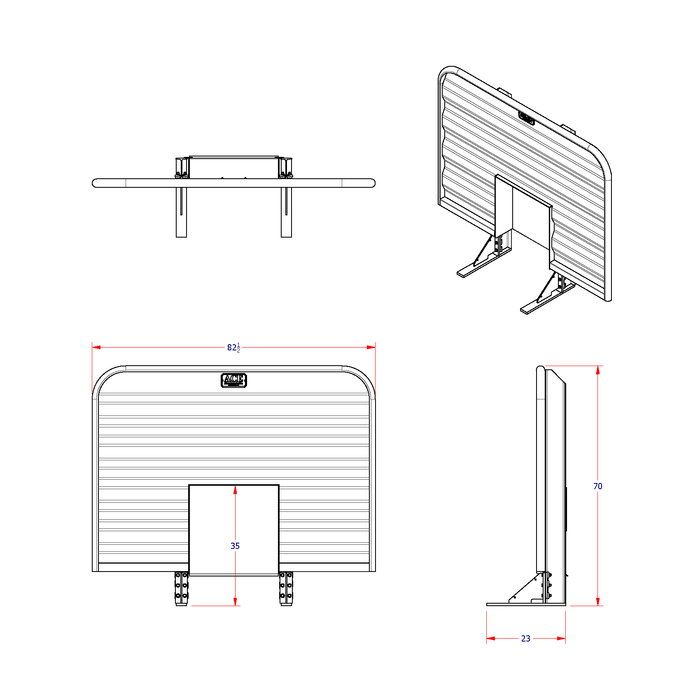

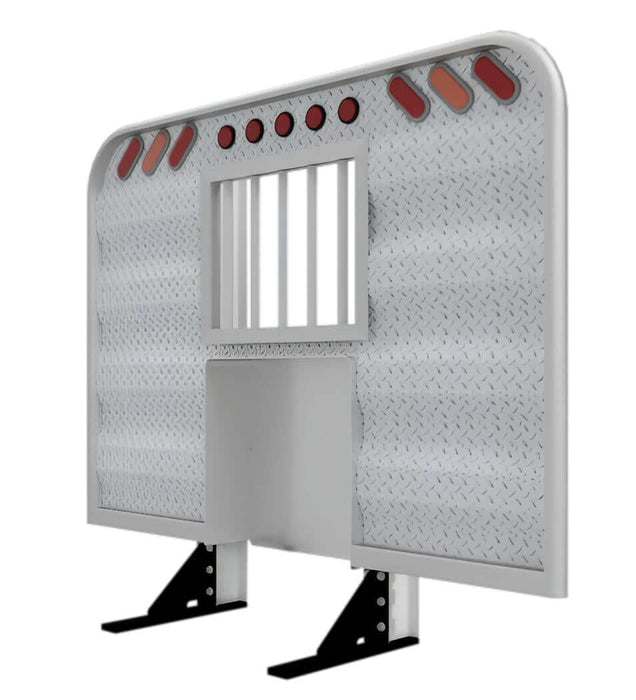

Two configurations are available to meet different operational needs. The HR20M000 offers a standard aluminum headache rack with hydraulic tank cutout, while the HR20M23J includes the same cutout design and adds a jailbar window for improved rear visibility along with integrated lights for increased safety during low-light operation. Both versions are constructed from corrosion-resistant aluminum checker plate and require a compatible mounting kit for installation. A compatible mounting kit is required and sold separately. Recommended options are the UHD4X15 (aka HR01-15) or UB4X18 universal U-bolt mount kit.
Specs:
- Manufacturer: Ace Manufacturing
- Product series: HR2 series
- Models: HR20M000, HR20M23J
- Product type: Headache rack for semi truck
- Secondary classification: Tractor trailer headache rack
- Material: Aluminum checker plate and structural aluminum frame
- Finish: Aluminum checker plate
- Headache rack height: 5 feet tall (HR2 series standard)
- Hydraulic tank compatibility: Ace Manufacturing 60 or 70 gallon hydraulic tanks
- Mounting kit: Required for installation, sold separately
- Recommended mount kits: HR01-15PC or UB4X18
- Mounting style: Frame mounted
- Application: Semi trucks, tractor trailers, logging and vocational trucks
- Shipping: LTL freight shipment required
