LR6 Semi Truck Logging Rack with STD ears, Tapered Deck (Window Optional)

Product Features:

• Heavy-duty tapered deck aluminum semi truck logging rack engineered for maximum truck cab protection and clearance.

• Built around high-strength webbing + tube design with steel-reinforced U-bolt mounting points for rugged durability.

• Includes STD ears with tapered upper corners and nerf bar for secure installation.

• Tapered full width deck only configuration provides a sturdy platform with middle bar support.

• Mount kit included (LR01 with U-bolts, tie bars, hardware & isolation strips) for complete installation.

• Checker-plate aluminum panels resist corrosion and stand up to heavy industrial use.

• Designed for service and logging applications requiring elevated protection and utility.

• LR6 Low-Profile Racks feature a web depth of just 12" at 2 ft above frame for increased clearance.

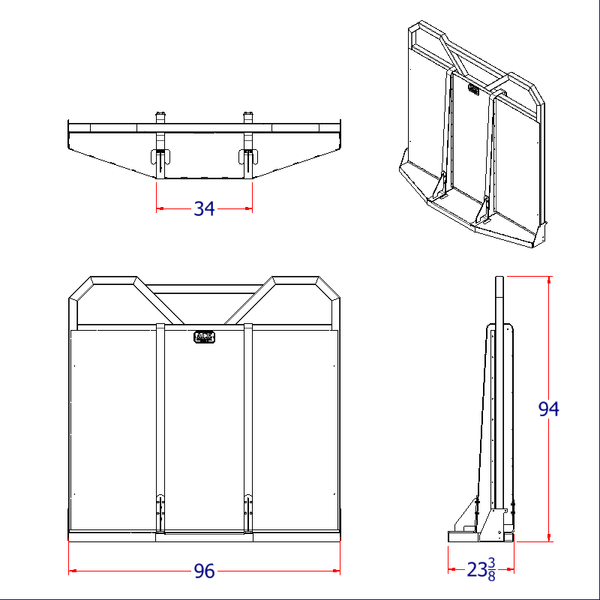

• Available with window - Part# LR6110

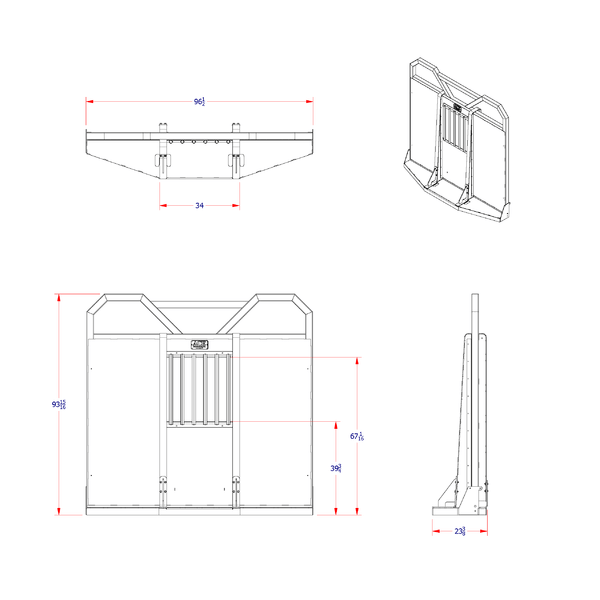

• Available without windown - Part# LR6112

Product Description:

The Ace Manufacturing tapered deck aluminum semi truck logging rack is a rugged aluminum cab protection solution engineered for heavy-duty logging and vocational truck applications. Built using a durable webbing and tube design with reinforced steel mounting points, this rack provides exceptional strength and protection for truck drivers and they're cabs in logging applications,

Featuring a tapered deck configuration with standard ears and an integrated nerf bar, the LR6100 and LR6102 decks offers reliable protection and structural support in demanding work environments. A complete mounting kit is included to simplify installation and ensure a secure fit on compatible semi trucks. Available in a windowless or window design

Specs:

• Manufacturer: ACE Manufacturing
• Model: LR6110 or LR6112
• Rack type: Low profile logging rack

• Material: Aluminum webbing and tube construction
• Finish: Aluminum checker plate
• Deck configuration: Tapered deck
• Mounting style: Frame mounted
• Included hardware: Complete mount kit (U-bolts, tie bars, isolation strips, hardware)
• Overall dimensions: 96" W x 24" D x 94" H
• Approximate weight: 475 lbs
• Options: Window
• Application: Logging, vocational, and heavy-duty semi trucks
• Shipping: LTL freight shipment required
