LR7 Log Truck Headache Rack Aluminum Cab Guard with HD ears, Full Width Deck (Window Optional)

Product Features:

• Log truck headache rack engineered to protect semi truck cabs in logging, vocational, and heavy duty applications
• Full web aluminum cab guard construction provides continuous rear cab protection and durability
• Heavy duty ears with square upper corners and reinforced structure for added rigidity
• Full deck design offers complete width walkable space on the rear of the cab
• Complete mount kit included with U-bolts, tie bars, isolation strips, and installation hardware
• Checker plate aluminum panels for harsh working conditions
• Ideal aluminum log truck cab protector for log trucks, vocational trucks, and heavy duty semi trucks
• Available with optional window configuration to improve rear visibility


Product Description:

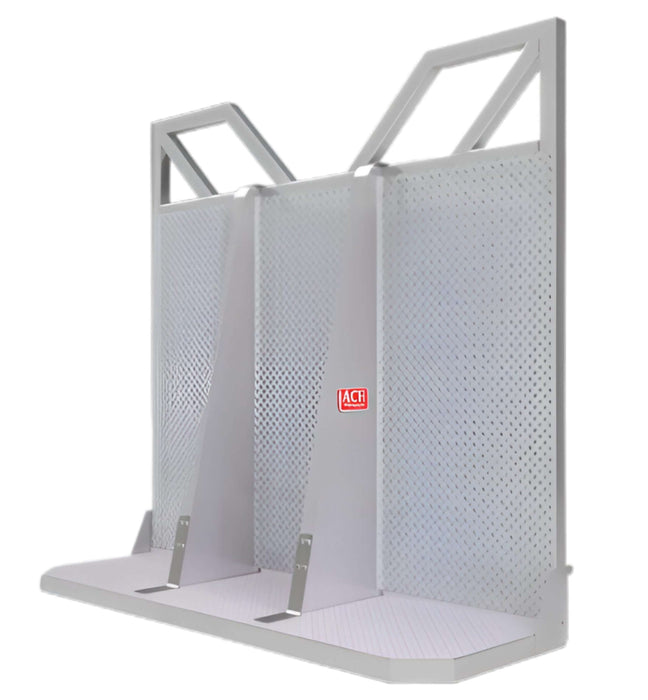

The Ace Manufacturing log truck headache rack is a heavy duty aluminum cab guard designed for logging, vocational, and heavy service truck applications. Built with a full web structural design and reinforced heavy duty ears, this aluminum log truck headache rack delivers reliable cab protection and durability in demanding work environments. Part numbers LR7320 for windowless design or LR7321 for jailbar window designs

The full deck design offers complete width walkable space on the rear of the cab, giving operators a stable platform when access behind the cab is required. This product is available in two configurations to suit different operational needs, including an option with a rear window opening for improved visibility. Checker plate aluminum construction provides long-term corrosion resistance and traction, and a complete mount kit is included for secure installation on compatible semi trucks.

Specs:

• Manufacturer: Ace Manufacturing
• Model: LR7320 or LR7321 (Window Version)
• Product type: Log truck headache rack / aluminum cab guard
• Rack style: Full web logging rack with heavy duty ears

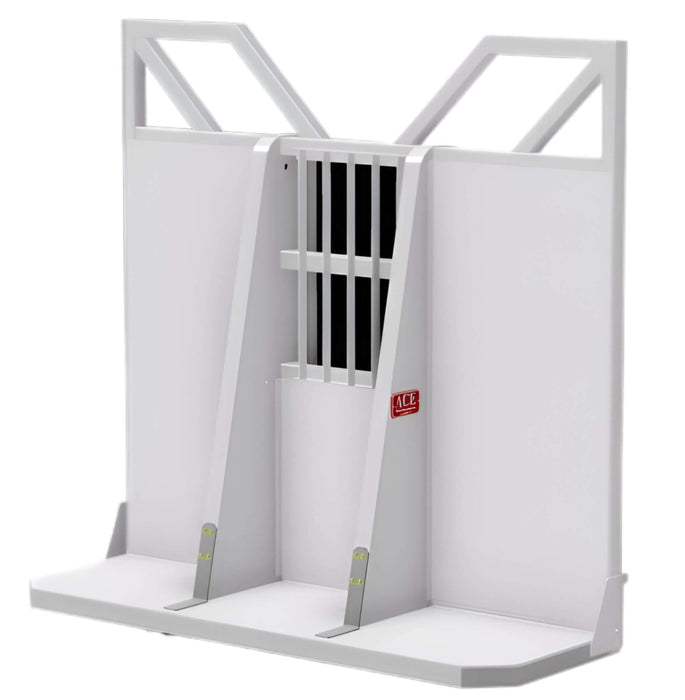

• Window: Optional
• Deck type: Full deck, complete width walkable space on rear of cab
• Ear type: Heavy duty ears with square upper corners
• Material: Structural webbing and tube aluminum with checker plate panels
• Mounting style: Frame mounted
• Included hardware: Mount kit with U-bolts, tie bars, isolation strips, hardware

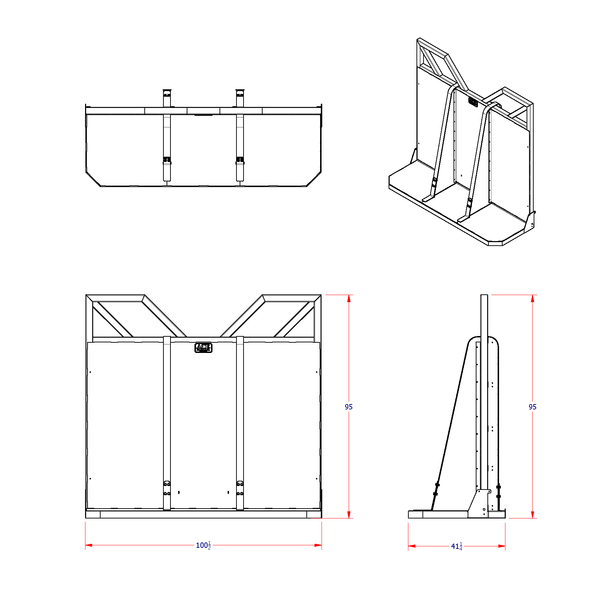

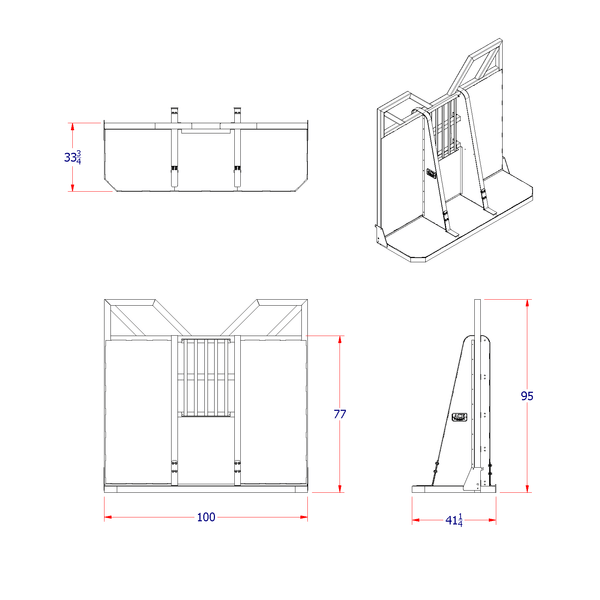

• Overall dimensions: 100.5" W x 41.25" D x 95" H
• Approximate weight: 510 lbs
• Application: Log trucks, vocational trucks, heavy duty semi trucks
• Shipping: LTL freight shipment required
