LR7 Log Truck Headache Rack Aluminum Cab Guard with HD ears, & Tapered Deck

Product Features:

• Log truck headache rack engineered to protect semi truck cabs in logging, vocational, and heavy duty applications
• Heavy duty aluminum cab guard construction with reinforced HD web design and steel-reinforced mounting areas
• Tapered deck design offers narrowed walk space on the rear of the cab
• Available with or without a jailbar window with mesh for visibility and airflow
• Checker plate aluminum panels resist corrosion and provide traction under work conditions
• Complete mount kit included with U-bolts, tie bars, isolation strips, and installation hardware
• Ideal aluminum log truck cab protector for log trucks, vocational trucks, and heavy duty semi trucks

Product Description:

The Ace Manufacturing LR7310 / LR7312 log truck headache rack family offers heavy duty aluminum cab protection engineered for logging, vocational, and heavy service semi truck applications. Built with a reinforced HD web design, steel reinforced mounting areas, and a tapered deck with full width walkable space, this aluminum log truck headache rack is ready for demanding work environments.

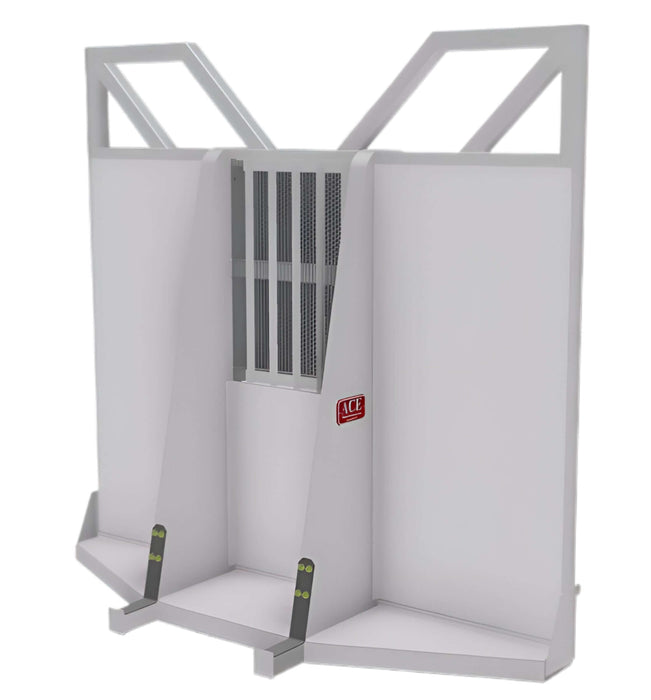

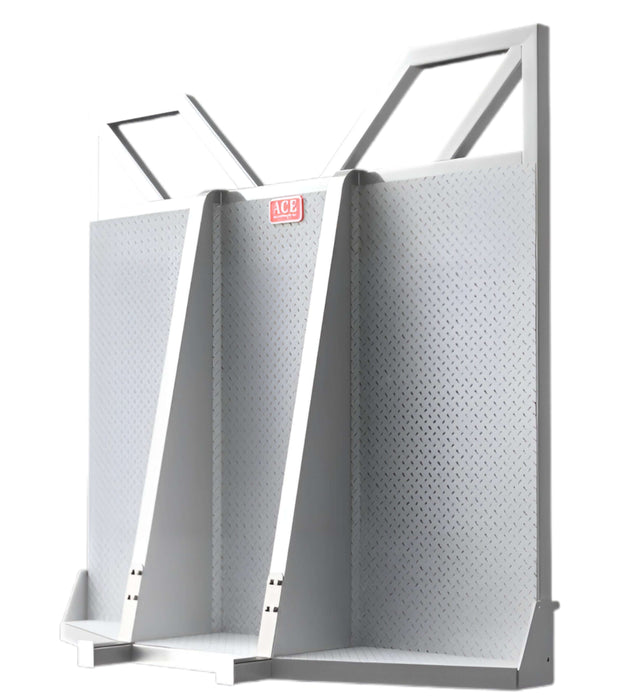

Two configurations are available to suit different needs: the LR7310 includes the classic tapered deck design without a window, while the LR7312 adds a jailbar window with mesh for additional rear visibility and airflow. Both options include a complete mount kit to simplify installation on compatible trucks.

Specs:

• Manufacturer: Ace Manufacturing
• Product family: LR7  series
• Models: LR7310, LR7312
• Product type: Log truck headache rack / aluminum cab guard
• Deck type: Tapered deck, complete width walkable space on rear of cab
• Material: Structural webbing and tube aluminum with checker plate panels
• Mounting style: Frame mounted
• Included hardware: Mount kit with U-bolts, tie bars, isolation strips, hardware

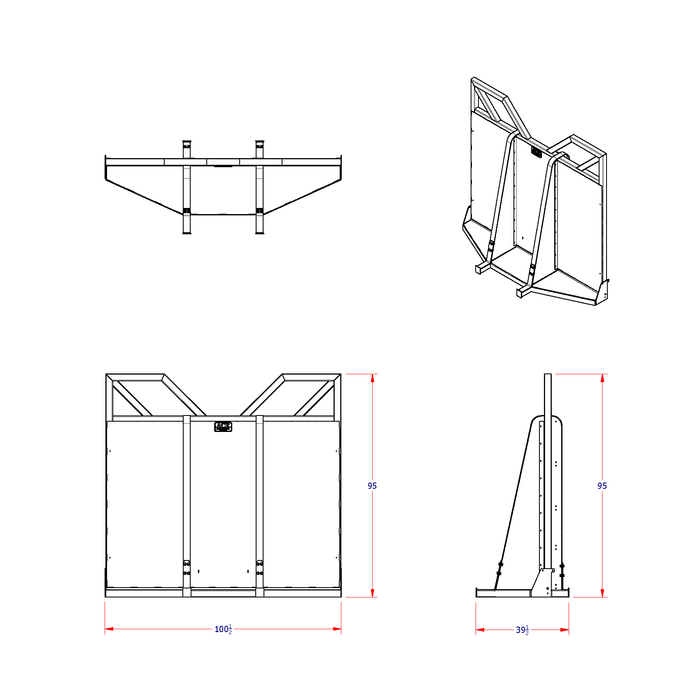

• Overall dimensions (LR7310): 100.5" W x 39.5" D x 95" H

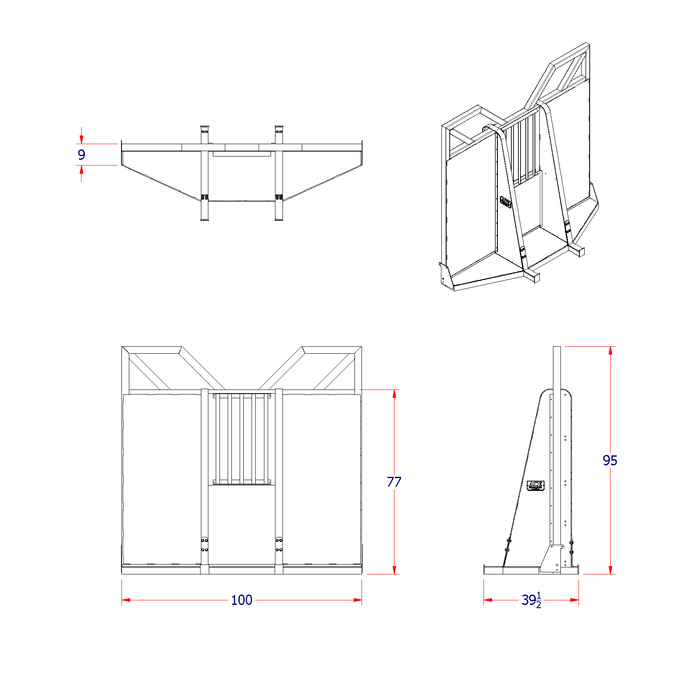

• Overall dimensions (LR7312): 100" W x 39.5" D x 95" H
• Approximate weight (LR7310): 510 lbs
• Approximate weight (LR7312): 520 lbs
• Application: Log trucks, vocational trucks, heavy duty semi trucks
• Shipping: LTL freight shipment required
