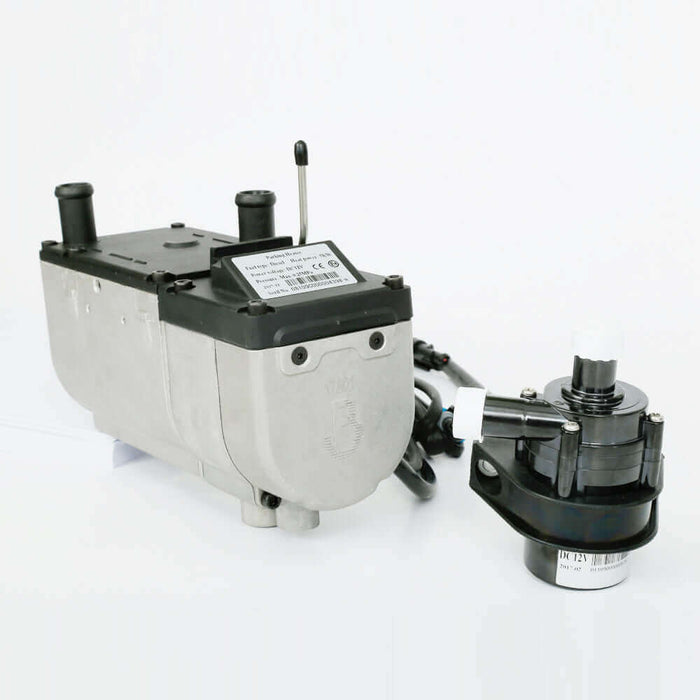

Walrus 5000C Diesel Coolant Heater Kit (17,000 BTU)
Product Details:
-
Diesel Powered: Top rated Diesel coolant heater kit for use in semi trucks, RV's, mining vehicles and more!
- Powerful Heating: Provides 5kW/17,000 BTU of heat for reliable engine start.
- Complete Installation Kit: Includes a mounting bracket, hardware, fuel pump, fuel line, wiring harness, exhaust pipe with muffler, coolant pump, screws, clamps, and straps.
- Built-In Elevation Adjustment: Adaptable to elevations up to 3000 meters, ensuring consistent performance in high-altitude environments.
- Versatile Application: Suitable for diesel engines and other systems that use liquid as a heat-carrying medium.
-
Use Cases: Ideally used for pre-heating engines, warming vehicle cabs, and allowing smooth engine starting in cold enviroments
Looking for a the gasoline coolant heater? Click here!
Product Description:
The Walrus 5000C diesel coolant heater kit delivers 5kW (17,000 BTU) of efficient engine and interior heating for diesel powered trucks, rv's and mining vehicles. Built to perform in harsh cold, it features an elevation adjustment function for reliable operation up to 3000 meters. Ideal for preheating engines and warming cabins, this hydronic heater ensures fast starts and comfort in any environment. The complete kit includes everything needed for installation: fuel pump, wiring harness, coolant pump, exhaust pipe with muffler, mounting hardware, and more.
Warranty:
∙ Highway Vehicles and Recreational Vehicles: 2 years or 2000 hours of operation, whichever comes first.
∙ Off-Highway Vehicles and Marine Vessels: 1 year or 1000 hours of operation, whichever comes first.
(For full warranty info see this link: https://generalcomponents.com/pages/warranty-info)
Technical Information:
| Specification | Value |
|---|---|
| Heat Output: BTU/hr (kW/hr) | 8189(2.4) – 17061(5) |
| Diesel Fuel Consumption: U.S Gal./hr (L/hr) | 0.07(0.27) – 0.16(0.62) |
| Electric Power Consumption: Amps (Watts) @12VDC | 2.17(26) – 4.42(53) |
| Electric Power Consumption: Amps (Watts) @24VDC | 1.08(26) – 2.21(53) |
| Voltage Operating Range: Volts DC (for 12V models) | 10.5 – 16 with Low and High Voltage Protecton |
| Voltage Operating Range: Volts DC (for 24V models) | 21 – 32 with Low and High Voltage Protecton |
| Operating Modes | Automatic Timer On / Off wth Programmable Run Time |
| Dimensions: LxWxH, Inches (mm) | 8.78 x 3.39 x 5.98 (223 x 86 x 152) |
| Weight: lbs (kg) | 5.73 (2.6) |
