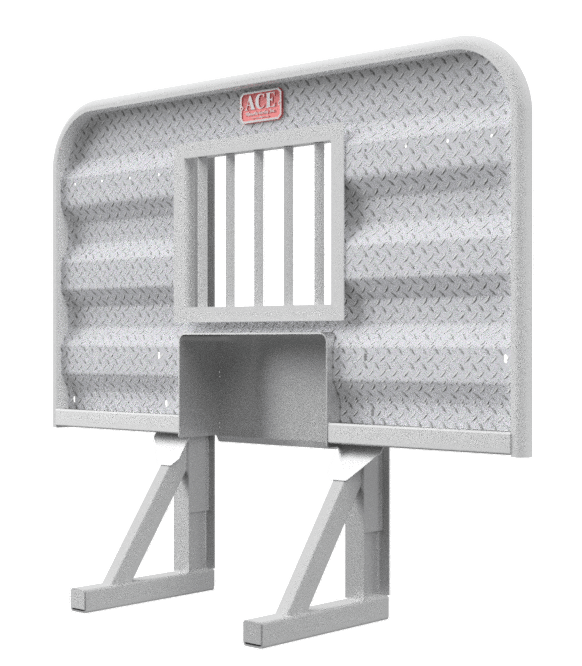

HR10 4' Headache Rack for Semi Truck with Hydraulic Tank Cutout

Product Features:

• Headache rack for semi truck designed with integrated space to accommodate frame-mounted hydraulic tanks

• HR10 series headache rack built to support hydraulic system installations behind the cab

• Jailbar window design provides rear cab visibility while maintaining protection

• Full aluminum headache rack plate offers rear cab protection for vocational and hydraulic applications

• Semi truck aluminum headache rack constructed from durable aluminum checker plate
• Designed for dump trucks, end dumps, and vocational trucks requiring built in hydraulic tank

• Premium design focused on hydraulic tank compatibility and cab protection

• Rounded top corners and reinforced aluminum structure for strength and durability

• Mounting kit required for installation (sold separately) — recommended kits: UHD4X15 (aka HR01-15) or UB4X18

Product Description:

The Ace Manufacturing HR10 series headache rack for semi truck applications is engineered specifically for trucks equipped with hydraulic systems that require behind-the-cab tank mounting. This combined listing includes two variations designed to fit different hydraulic tank sizes while sharing the same core rack structure and features.

The HR10M03J model is designed to accommodate 60 or 70 gallon hydraulic tanks, making it ideal for larger vocational and dump truck configurations. The HR10S03J model is designed for 40 or 50 gallon hydraulic tanks, providing a compact option for trucks with smaller hydraulic systems.

Both models feature a jailbar window for improved rear visibility and are constructed from corrosion-resistant aluminum checker plate for durability in demanding work environments. Built as part of Ace Manufacturing’s HR10 series, these tractor trailer headache racks provide reliable rear cab protection while allowing proper clearance for hydraulic components. A compatible mounting kit is required and must be purchased separately. Recommended options are the UHD4X15 (aka HR01-15) or UB4X18 universal U-bolt mount kit.

Specs:

• Manufacturer: Ace Manufacturing

• Models: HR10M03J, HR10S03J

• Product series: HR10 series

• Product type: Headache rack for semi truck

• Secondary classification: Tractor trailer headache rack

• Material: Aluminum checker plate and structural aluminum frame
• Finish: Aluminum checker plate

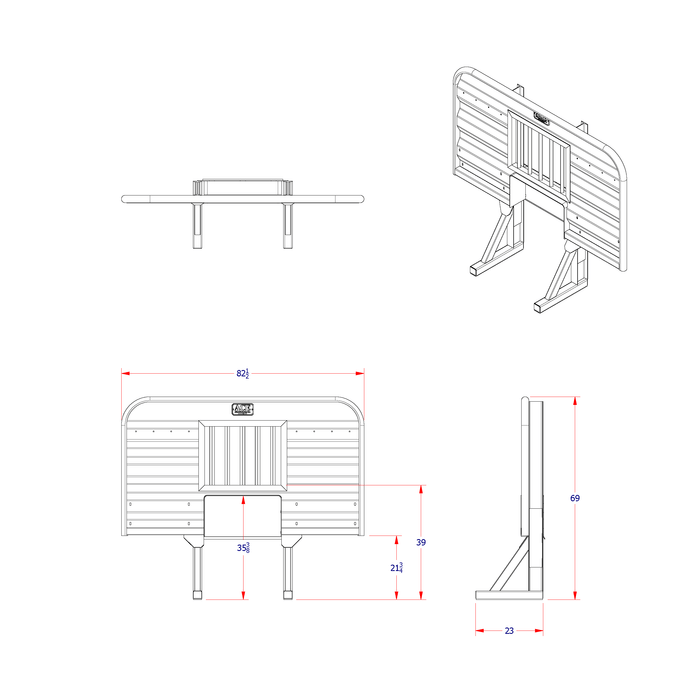

• Hydraulic tank compatibility:

  • HR10M03J: Fits 60 or 70 gallon hydraulic tanks

  • HR10S03J: Fits 40 or 50 gallon hydraulic tanks

• Window option: Jailbar window

• Mounting kit: Required for installation, sold separately

• Recommended mount kits: HR01-15PC or UB4X18

• Mounting style: U-Bolt Frame mounted

• Application: Semi trucks, tractor trailers, dump trucks, vocational trucks with
• hydraulic systems

• Shipping: LTL freight shipment required
