Bison 5000A XL Gasoline Bunk Air Heater Kit w Analog Controller for Large Van, Box Trucks, and RV's
Product Details:
- Generates warm air using gasoline drawn from the fuel tank to heat the cab
- Powerful 5kW/17,000 BTU forced air furnace for a reliably warm cab
- Universal design commonly used for air heating large cubic area vehicles such as large vans, commercial vehicles, and RV's
- 12V DC, gasoline-powered, and no-idle
- Automatic altitude adjustment up to 3000 meters
- Includes everything needed for install including heater, wiring harness, fuel lines, multiple-outlet ducting, mounting plate, and all hardware
- 7 levels of heating intensity to meet users desired temperature
- 2 Year or 2000 Hour Warranty
Product Description:
The Bison 5000A gasoline air furnace is the perfect gas heater for such as large vans, commercial vehicles, and RV's. This bunk heater is designed to blow clean and safe hot air into the vehicles cab for overnight heating without the need for the vehicles engine to be running. Powered by it's powerful 5kW/17,000 BTU design, this heater is designed to heat vehicles with large cubic air space such as large vans, box truck boxes, and RV's. The kit includes all necessary hardware for a basic installation, such as a fuel line with couplings and clamps, air ducting, one outlet, a mounting plate, screws, and straps. The wiring harness is pre-assembled with high-quality connectors, ready to be plugged in.
Warranty:
General Components offers a 2 year or 2000 hours warranty for the Bison 5000A gasoline heater. This warranty must be initiated on the General Components website following the instructions linked here: https://generalcomponents.ca/self/
Digital Controller Modes:
The Bison 5000A Gasoline Heater comes with a variety of heating modes to meet a variety of situations.
- Manual Start up and shut Down: User turns heater on and off using power button
- Daily preset hours runtime: heater runs daily during user preset hours ex. 9pm-6am
- Temperature activated: The heaters internal thermostat when reaching the users preset min temperature will automatically turn the heater on until the temperature reaches the user preset max temperature

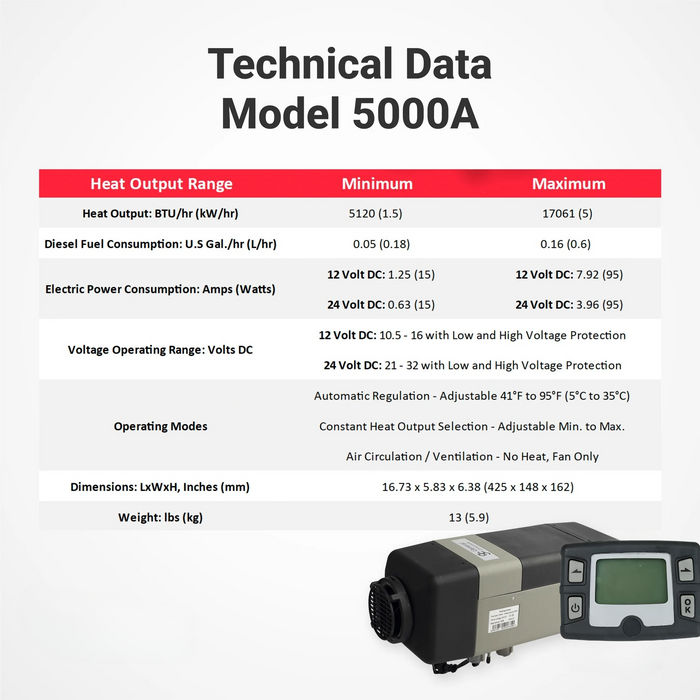

Technical Information:
| Specification | Value |
|---|---|
| Heat Output: BTU/hr (kW/hr) | 8189(2.4) – 17061(5) |
| Diesel Fuel Consumption: U.S Gal./hr (L/hr) | 0.07(0.27) – 0.16(0.62) |
| Electric Power Consumption: Amps (Watts) @12VDC | 1.25 (15 ) – 7.92 (95) |
| Electric Power Consumption: Amps (Watts) @24VDC | 0.63 (15 ) – 3.96 (95) |
| Voltage Operating Range: Volts DC (for 12V models) | 10.5 – 16 with Low and High Voltage Protecton |
| Voltage Operating Range: Volts DC (for 24V models) | 21 – 32 with Low and High Voltage Protecton |
| Operating Modes | Automatic Regulation – Adjustable 41°F to 95°F (5°C to 35°C) Constant Heat Output Selection Air Circulation / Ventilation |

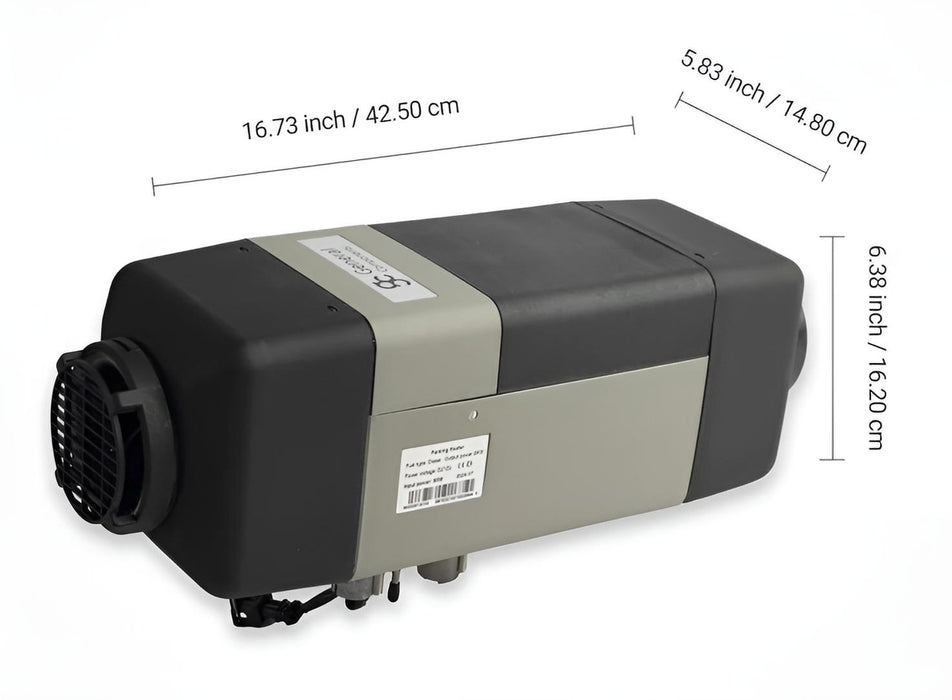

| Dimensions: LxWxH, Inches (mm) | 16.73 x 5.83 x 6.38 (425 x 148 x 162) |
| Weight: lbs (kg) | 13 (5.9) |
