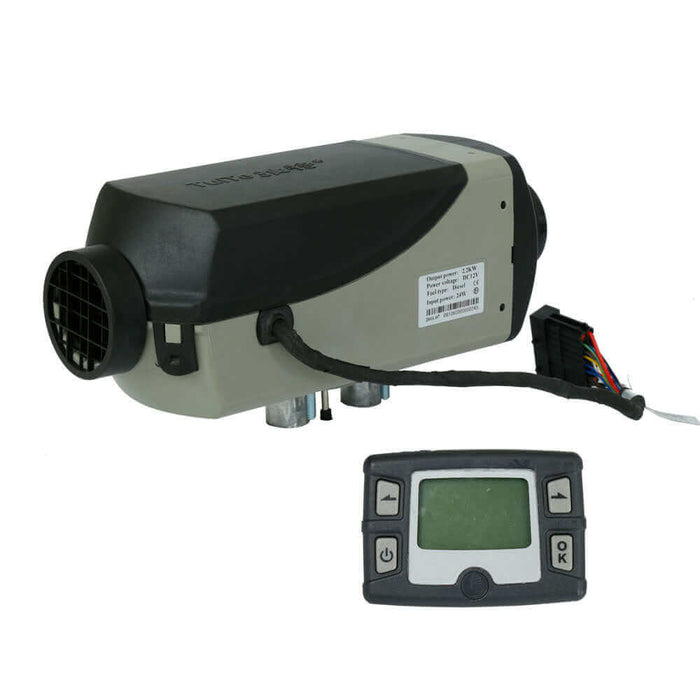

General Components Bison 2200A 2.2Kw Diesel-Fired Heater Kit With Digital Controller GC0644

Original price $699.00 - Original price $699.00
Original price
$699.00 - $699.00
Current price $699.00
  • Part #GC0651
  • 2.2kW/7000BTU no-idle forced air diesel-fired heater kit with programmable digital timer and all required hardware for basic installation. Includes 1m air duct with one register, fuel pump with 7m fuel line, fuel pickup tube and a tee, wiring harness straps, screws, clamps and straps, exhaust and intake tubing.
  • Bison series 2200A is a 2.2kW/7000BTU compact forced air diesel-fired furnace. Powerful, quiet and very efficient, it’s designed for air heating applications in cabs/bunks of commercial vehicles, boats and RV’s. This no-idle air heater comes in 12V DC and 24VDC versions. This kit has all necessary hardware for a basic installation of the unit: fuel line with couplings and clamps, air ducting and one outlet, mounting plate, screws, straps, etc. Wiring harness is fully assembled, with high quality connectors ready to be plugged in.
    Specification Value
    Heat Output: BTU/hr (kW/hr) 2900(0.85) – 7506(2.2)
    Diesel Fuel Consumption: U.S Gal./hr (L/hr) 0.03 (0.1) – 0.07 (0.28)
    Electric Power Consumption: Amps (Watts) @12VDC 0.58 (7) – 2.83 (34)
    Electric Power Consumption: Amps (Watts) @24VDC 0.29 (7) – 1.42 (34)
    Voltage Operating Range: Volts DC (for 12V models) 10.5 – 16 with Low and High Voltage Protecton
    Voltage Operating Range: Volts DC (for 24V models) 21 – 32 with Low and High Voltage Protecton
    Operating Modes Setpoint – Adjustable 41°F to 95°F (5°C to 35°C)
    Constant Heat Output Selection – Adjustable Min. to Max.
    Air Circulation / Ventilation – No Heat, Fan Only
    Unit Dimensions: LxWxH, Inches (mm) 12.21 x 4.53 x 4.80 (310 x 115 x 122)
    Unit Weight: lbs (kg) 5.95 (2.7)
SKU GC0644
17 in stock, ready to be shipped
